Isolation Pod 1720-1
healthcare

ISOLATION POD

Modular healthcare solutions to efficiently isolate medical procedures and patients. Cubicall Isolation Pods can be configures in 2-foot increments and feature negative pressure HEPA filtration, automated UV germicidal irradiation, hospital-grade flooring and antimicrobial walls.

SpecsConfigure

Negative Pressure

5-stage negative pressure HEPA filtration with UVC disinfection

Easy Installation

Booths ship flat, easily assemble with a few tools, and move with the changes.

Customization

Choose colors, finishes and features to match facility requirements.

Made in the USA

Designed and manufactured with quality and sustainability in mind.

isolate patients & aerosol generating procedures

Cubicall’s space-saving, cost-efficient Isolation Pods easily assemble and fit within compact facilities so frontline workers can focus on what they do best.

  • Save time by cleaning and disinfecting smaller areas
  • Ensure safety and compliance by isolating patients and aerosol generating procedures
  • Easily reconfigure layouts or breakdown and store for future needs

With an added negative pressure HEPA filtration system, most viruses and pathogens released are filtered and/or inactivated— safely allowing filtered air to be exhausted outside of the pod within a larger room.  If required, the filtration unit can be integrated into existing HVAC systems.

Modular Solutions

Customize your Isolation Pod to expand or contract the booth in 2ft increments as required.

Isolation Pod Font closed 1720
Negative Pressure HEPA filters for Cubicall Exam Pods

negative pressure HEPA filtration

iCubicall Exam Pods ship standard with negative pressure HEPA filtration units that well exceed twelve (12) air changes per hour (ACH), the minimum recommendation by the CDC. The quiet (62dB) 350w brushless motor unit includes UV germicidal irradiation.

5-stage filter process

  1. Washable foam pre-filter
  2. Deep-pleated Moisture Barrier
  3. H13 99.95% Efficient HEPA Filter
  4. 7lb Carbon Filter
  5. UVC Germicidal Light
FAQ
UV germicidal irradiation

Automated UV Disinfection

Optional hassle-free disinfection during and after each use. Using the latest UV technology, the autonomous process continually disinfects surfaces and air by inactivating pathogens and viruses, including SARS-CoV-2— while being completely safe for occupants within the booth.

24/7 surface & air disinfection

Safe for Occupants

Maintenance Free

UV Tested & Certified

How it Works

Powered by patented Care222® filtered Far UV-C technology, Cubicall UV Phone Booths with PURO Protect 222 utilize a proven & safe narrow band of 222nm UV light emission to effectively inactivate viruses, bacteria & fungi.

The integrated fixture filters out harmful UV wavelengths to create a safe environment for occupants within the booth while inactivating surface and airborne pathogens. PURO Protect 222 is UL listed, achieving the highest level of safety as approved by Underwriters Laboratories (UL).

  • Independently tested and certified by UL
  • Continual operation meets exposure guidelines for occupied space established by the American Conference of Governmental Industrial Hygienists (ACGIH) and the International Electrotechnical Commission (IEC)
  • 2-year warranty with 5-year system life
  • Meets California ozone emissions limit; CARB certified

features

Exam Pod features

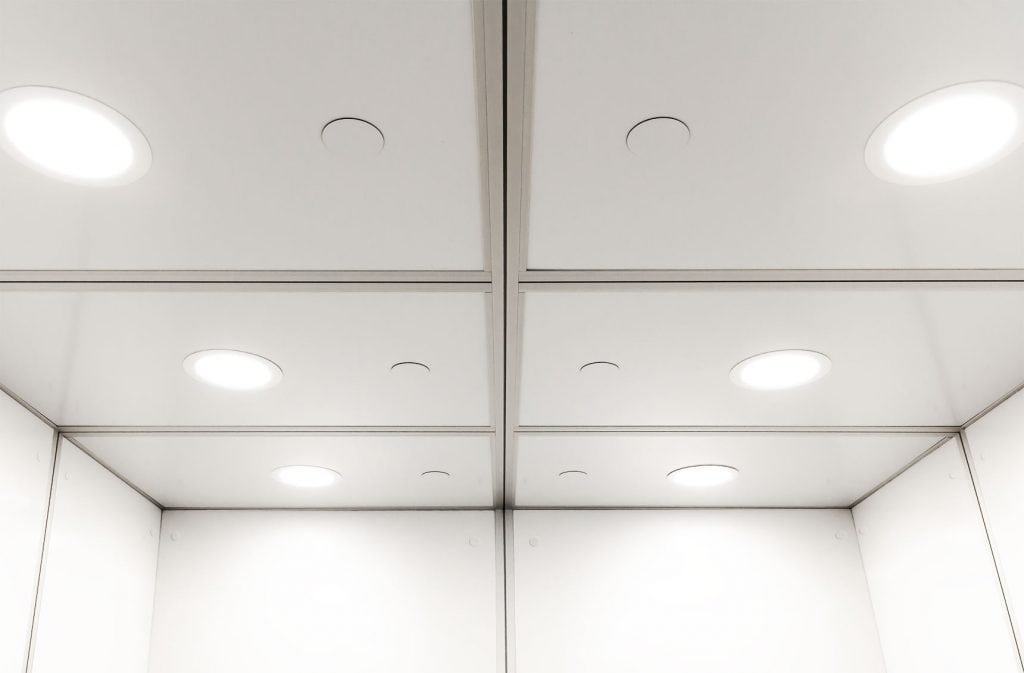

Ceilings sprinkler-ready
Automatic LED lights
Available in a variety of finishes for easy cleaning/disinfecting, including antimicrobial and chemical-resistant surfaces
Industry-only, patent-pending bifold door with acoustically-engineered dual-pane laminated glass to make the most of available floor plans
Leveling feet
Negative pressure HEPA filtration with UVC at variable speeds— offering at minimum 15 ACH (air changes per hour) as recommended by the CDC

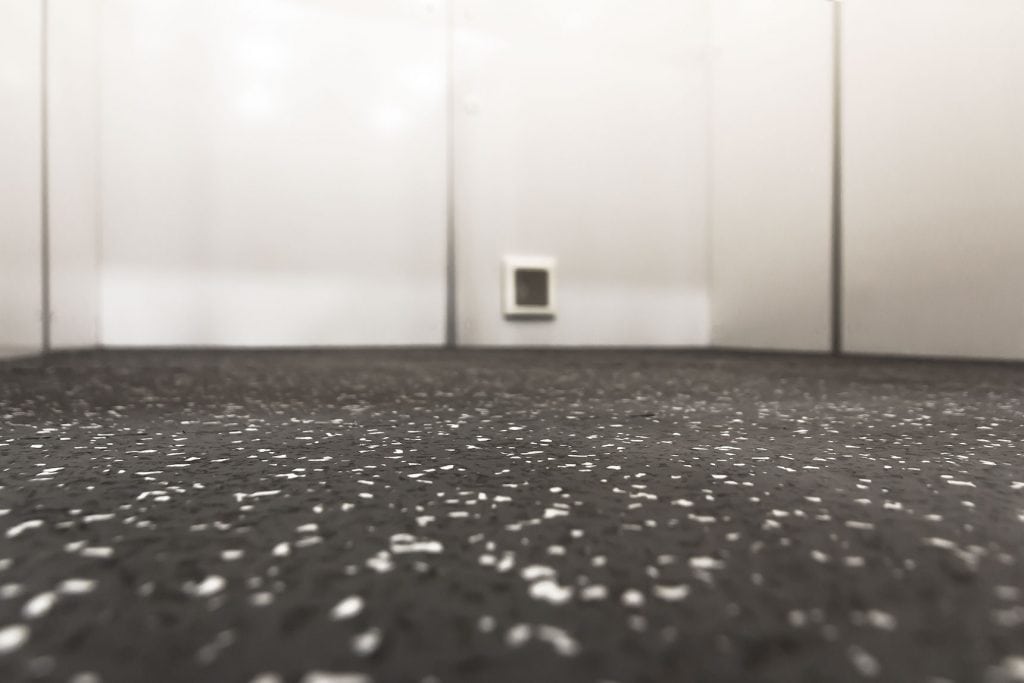

Hospital-grade flooring
Modular design for fast assembly, moving & storing
Custom compliant electrical needs as required

A BIFOLD
DIFFERENCE

maximizing space utilization

When meeting the requirements of International Building Codes, Cubicall’s patent-pending bifold door reduces the minimum encroachment requirement by more than 50%.

Ensure Compliance Learn More

Cubicall bifold door
specifications

Cubicall Isolation Pod

Starting at $19,500

Isolation Pod

Interior

Width: 84", Height: 77.75"; Depth: 100.75"/variable in 24", 33", 38" increments

Exterior

Width: 88", Height: 81"; Depth: 104"/variable in 24", 33", 38" increments

Electrical

Optional hospital-grade power strip; custom electrical options; 120v power cable for LED ceiling lights

Lighting

Automatic 5000k LED lights with motion/occupancy sensor

Custom

Fully customizable

Flooring

Hospital-grade vinyl with surface treatment for chemicals

UV Light

Optional UV ceiling lights for germicidal irradiation; manual or automated

HEPA Filtration Unit

Airflow

Up to 270 cfm

Dimensions

15.75" x 11.8" x 20"

Weight

65 lbs

Input Power

110v / 3 AMPs / 350 Watts

Motor Life

40,000 hours

Noise Level

62 dB max level

Operation

10-speed control panel w/ remote

faq

What type of UV Light is used in the HEPA filter?

The negative pressure HEPA unit features a UV-C Light. UVC has been shown to be effective at killing or inactivating microorganisms by destroying nucleic acids and disrupting their DNA. The unit includes an 8-watt Ultraviolet lamp at 253.7nm.

Does the HEPA filter capture the SARS-CoV-2 virus that causes COVID-19?

HEPA air filter must remove at least 99.95% (European Standard) or 99.97% (ASME) of particles 0.3 μm in diameter; with the filtration efficiency increasing for particle diameters both less than and greater than 0.3 μm. The novel Coronavirus is approximately 0.125 μm in size, meaning that a HEPA will capture it at near 100% efficiency.

A common misconception is that HEPA Filters function like a net and only capture particles of certain sizes, which is incorrect. HEPA filters are designed to target particles much smaller than 0.1 microns as these particles adhere to the fibers by diffusion at almost a 100% rate.

As added protection, the unit comes with a UVC germicidal light as the last stage of the filtration process. Test have proven that UVC light can inactivate the SARS-CoV-2 virus.

What are the different filter stages & how often should they be replaced?

Stage 1: Washable Foam Pre-Filter

Initial stage to pre-filter any large particulates. Wash or replace every 60 days.

Stage 2: Deep-pleated moisture barrier filter

Protects H13 HEPA filter from moisture and medium-sized particulates. Replace every 12 months.

Stage 3: H13 99.95% efficient HEPA filter

Captures 99.95% of particulate smaller than 0.3 microns. Efficiency increases with use. Replace every 12 months.

Stage 4: 7lb. carbon filter

Neutralizes odors. Replace every 12 months.

Stage 5: UVC germicidal light

Germicidal UV light that sanitizes air before it is released into the room. Replace every 12 months.

Need replacements? Place Your Order Here

Cost-effective

We’ve done the leg work so you don’t have to. Our pre-fabricated booths that assemble within 45-90 minutes save you time and money so you don’t have to obtain permits or chase contractors.

Flexible

Don’t limit your workspace with permanent build outs. Our modular designs move with the changes. Whether that’s on the same floor or into new spaces, our booths disassemble and reassemble.

Exam Pod Private Doctors Office

Exam Pod

smaller footprint, same great features

iCubical Exam Pods isolate medical tests to help ensure efficient processes and healthcare compliance in a smaller footprint— offering the same great features as iCubicall Isolation Pods.
