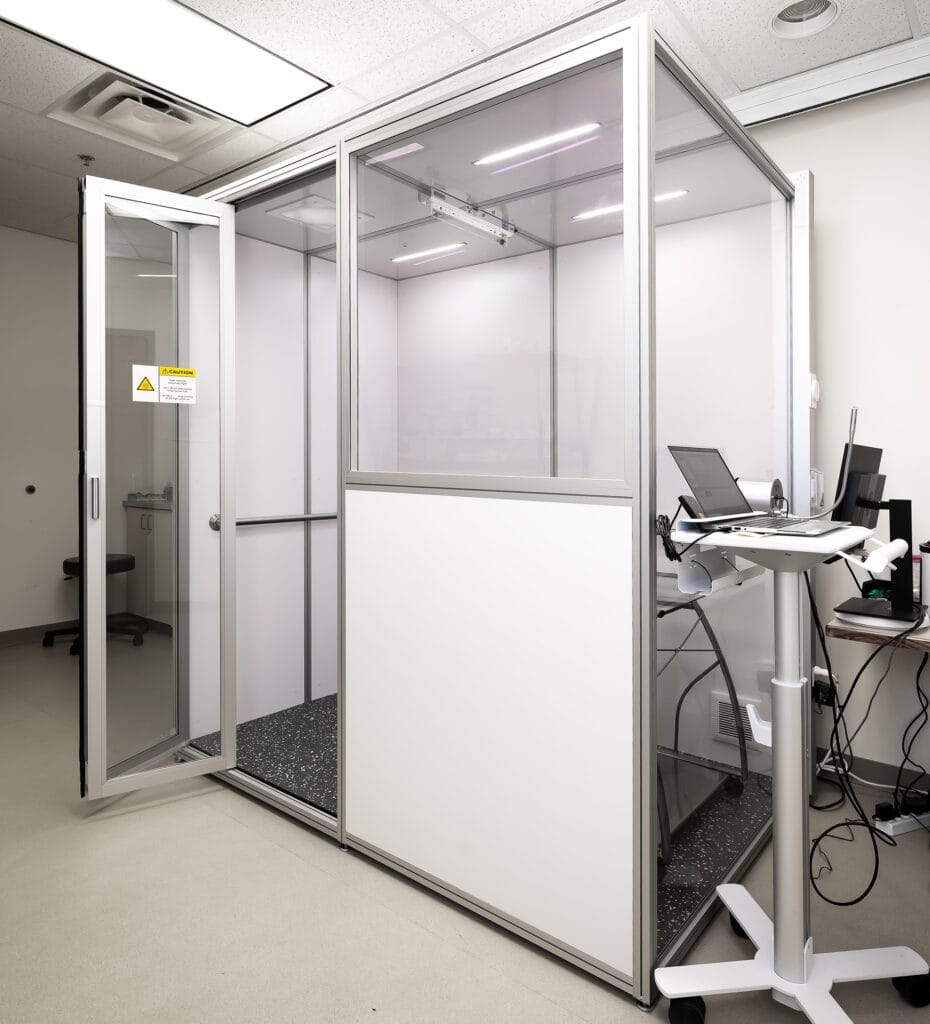

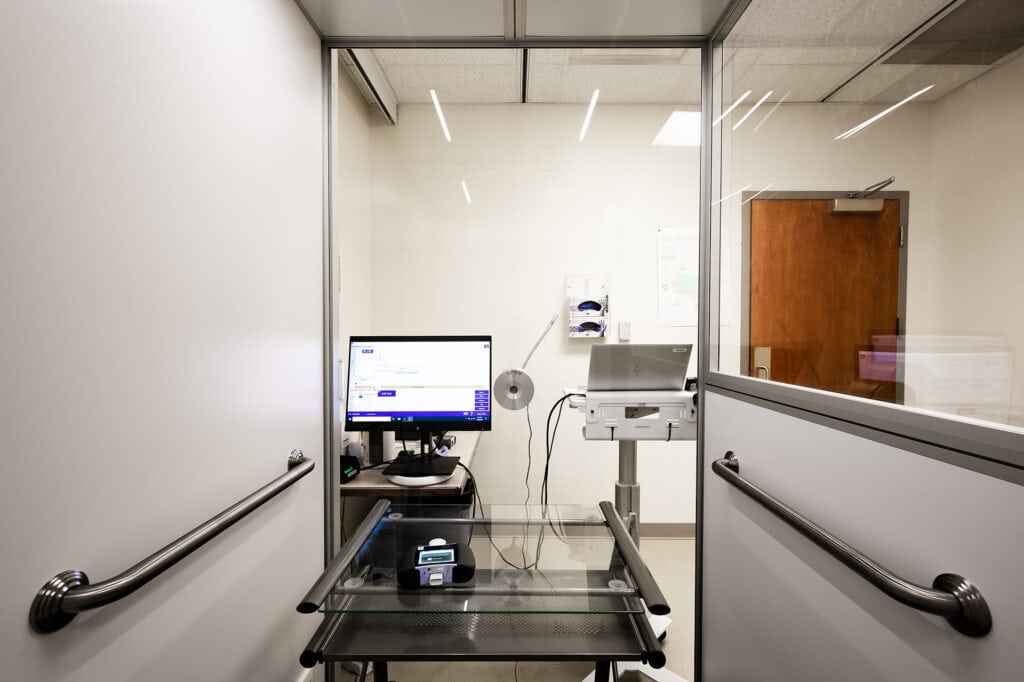

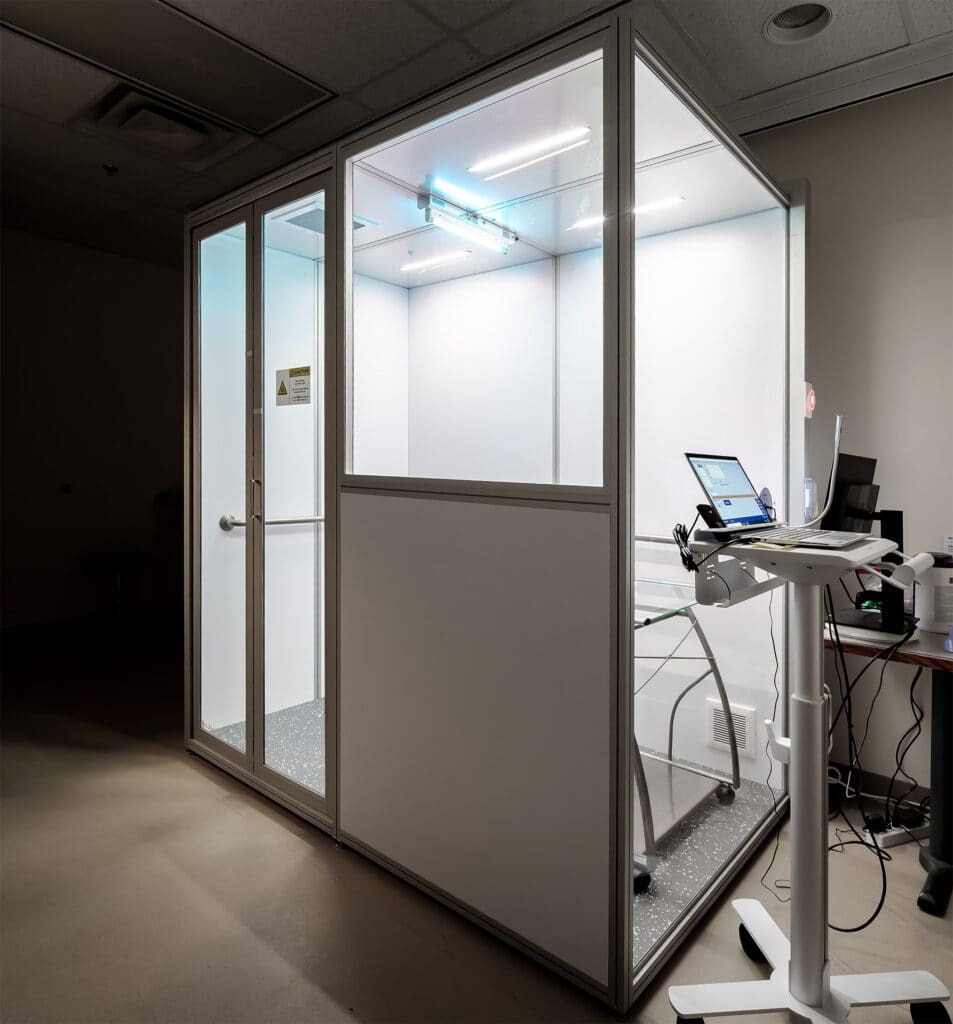

Exam Pod

Isolate medical exams to help ensure efficient processes and healthcare compliance. Cubicall Exam Pods feature negative pressure HEPA filtration, automated UV disinfection, hospital-grade flooring and antimicrobial walls.

ConfigureBuy Now

Negative Pressure

5-stage negative pressure HEPA filtration with UVC disinfection

Easy Installation

Booths ship flat, easily assemble with a few tools, and move with the changes.

Customization

Choose colors, finishes and features to match facility requirements.

Made in the USA

Designed and manufactured with quality and sustainability in mind.

isolate exams & aerosol generating procedures

Cubical Exam Pods are designed to isolate procedures and exams. The space-saving and efficient design allows the Exam Pods to fit within facilities so frontline workers can focus on what they do best.

  • Save time by cleaning and disinfecting smaller areas
  • Ensure safety and compliance by isolating patients and aerosol generating procedures

With the added negative pressure HEPA filtration system, most viruses and pathogens released are filtered and/or inactivated— safely allowing filtered air to be exhausted outside of the pod within a larger room.  And if required, the filtration unit can be integrated into existing HVAC systems.

negative pressure HEPA filtration

Cubicall Exam Pods ship standard with negative pressure HEPA filtration units that well exceed twelve (12) air changes per hour (ACH), the minimum recommendation by the CDC. The quiet (62dB) 350w brushless motor unit includes UV germicidal irradiation.

5-stage filter process

  1. Washable foam pre-filter
  2. Deep-pleated Moisture Barrier
  3. H13 99.95% Efficient HEPA Filter
  4. 7lb Carbon Filter
  5. UVC Germicidal Light
FAQ

features

Available in a variety of finishes for easy cleaning/disinfecting, including antimicrobial and chemical-resistant surfaces

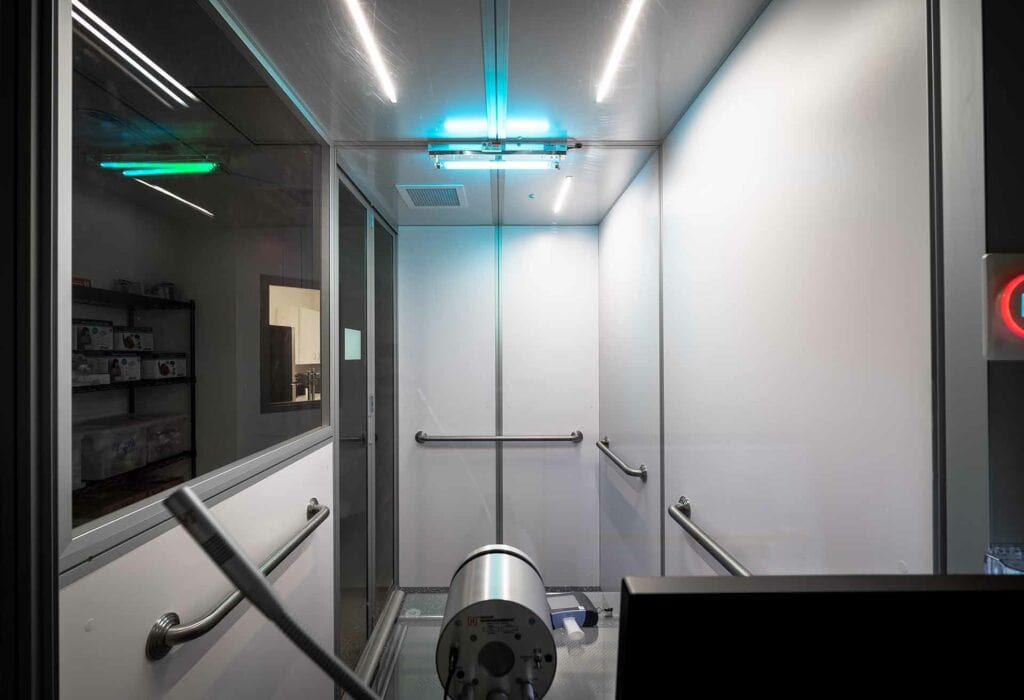

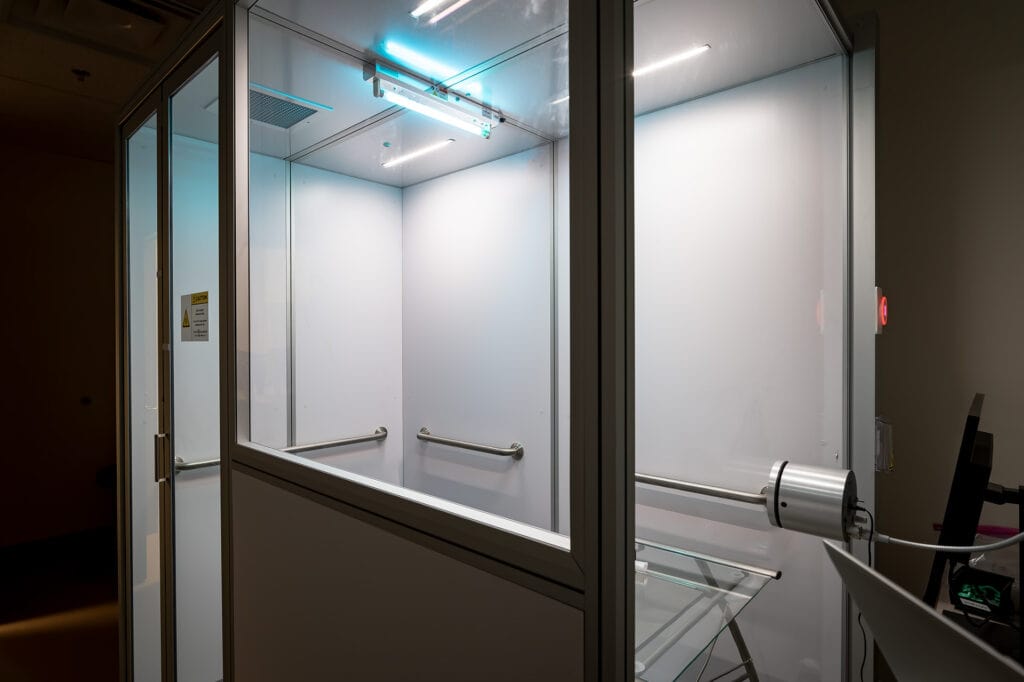

Automatic LED lights standard; optional after-use UV air & surface disinfection lamp
Negative pressure HEPA & UVC air filtration with variable speeds— offering minimum 15 ACH (air changes per hour) as recommended by CDC
Hospital-grade flooring
Modular design for easy assembly, moving & storing
Industry-only, patent-pending bifold door with acoustically-engineered dual-pane laminated glass
Leveling feet

A Bifold

Difference

maximizing space utilization

When meeting the requirements of International Building Codes, Cubicall's patent-pending bifold door reduces the minimum encroachment requirement by more than 50%.

Ensure Compliance Learn More

specifications

Cubicall Four Series - Exam Pod

Starting at $10,995

Exam Pod

Interior

38" x 77.75" x 84"

Exterior

41.25" x 79.5" 88.5"

Electrical

Optional hospital-grade power strip; 120v power cable

Lighting

Automatic 5000k LED lights with motion/occupancy sensor

Custom

Fully customizable

Shipping Weight

945 lbs

HEPA Filtration Unit

Airflow

Up to 270 cfm

Dimensions

15.75" x 11.8" x 20"

Weight

65 lbs

Input Power

110v / 3 AMPs / 350 Watts

Motor Life

40,000 hours

Noise Level

62 dB max level

Operation

10-speed control panel w/ remote

faq

What type of UV Light is used in the HEPA filter?

The negative pressure HEPA unit features a UV-C Light. UVC has been shown to be effective at killing or inactivating microorganisms by destroying nucleic acids and disrupting their DNA. The unit includes an 8-watt Ultraviolet lamp at 253.7nm.

Does the HEPA filter capture the SARS-CoV-2 virus that causes COVID-19?

HEPA air filter must remove at least 99.95% (European Standard) or 99.97% (ASME) of particles 0.3 μm in diameter; with the filtration efficiency increasing for particle diameters both less than and greater than 0.3 μm. The novel Coronavirus is approximately 0.125 μm in size, meaning that a HEPA will capture it at near 100% efficiency.

A common misconception is that HEPA Filters function like a net and only capture particles of certain sizes, which is incorrect. HEPA filters are designed to target particles much smaller than 0.1 microns as these particles adhere to the fibers by diffusion at almost a 100% rate.

As added protection, the unit comes with a UVC germicidal light as the last stage of the filtration process. Test have proven that UVC light can inactivate the SARS-CoV-2 virus.

What are the different filter stages & how often should they be replaced?

Stage 1: Washable Foam Pre-Filter

Initial stage to pre-filter any large particulates. Wash or replace every 60 days.

Stage 2: Deep-pleated moisture barrier filter

Protects H13 HEPA filter from moisture and medium-sized particulates. Replace every 12 months.

Stage 3: H13 99.95% efficient HEPA filter

Captures 99.95% of particulate smaller than 0.3 microns. Efficiency increases with use. Replace every 12 months.

Stage 4: 7lb. carbon filter

Neutralizes odors. Replace every 12 months.

Stage 5: UVC germicidal light

Germicidal UV light that sanitizes air before it is released into the room. Replace every 12 months.

Need replacements? Place Your Order Here

Cost-effective

We've done the leg work so you don't have to. Our pre-fabricated booths that assemble within 45-90 minutes save you time and money so you don't have to obtain permits or chase contractors.

Flexible

Don't limit your workspace with permanent build outs. Our modular designs move with the changes. Whether that's on the same floor or into new spaces, our booths disassemble and reassemble.

Isolation Pod

scale for requirements

Modular isolation solution with a larger footprint to address expanded requirements. Offering the same features as the Exam Pod, the Isolation Pod can be expanded or contracted in 2 foot increments.
